5 - 25 scfm
Minimum purge air usage saves the heat of adsorption, maximizing the moisture holding capacity of the purge air which minimizes the amount required. Standard 10 minute cycle gives increased desiccant life over units operating on shorter cycles. WM Series dryers allow the off-stream tower to fully repressurize before going on-stream preventing bed movement and loss of pressure downstream.
For more info on SPX Deltech WM Series dryersClick here

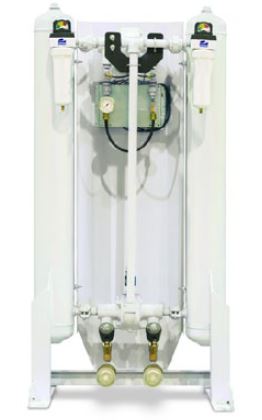

40 - 540 scfm
Utilizing twin towers filled with premium grade activated alumina, SPX Deltech Heatless dryers are available with 3 application specific control systems to meet the needs of industry with economy and performance. SPX Deltech HCS, HCL and HCT Series heatless desiccant dryers provide consistent outlet pressure dew points to -100°F (73°C).
For more info on SPX Deltech HCS, HCL, HCT Series dryersClick here
500 - 4300 scfm
ZP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40°F/-40°C) dew point performance is guaranteed. HBP Series compressed air dryers will produce the design dew point while operating continuously at maximum rated flow (100% duty cycle) at CAGI ADF 200 inlet standards of 100°F inlet temperature and 100% relative humidity at 100 psig.
For more info on SPX Deltech ZP Series dryersClick here
3750 - 10000 scfm
The Deltech HOC Series provides a cost effective solution to remove moisture from compressed air. The sustainable energy saving design reduces operating costs and delivers instrument quality air. Thermal energy generated during the air compression process is effectively utilized to regenerate the off-line desiccant bed. Ideally suited for oil-free air compressors, HOC series dryers turn “waste heat” into energy savings.
For more info on SPX Deltech HOC Series dryersClick here
250 - 3200 scfm
Deltech RP Series dryers will produce the design dew point while operating continuously at maximum rated flow (100% duty cycle) at CAGI ADF 200 inlet standards of 100°F inlet temperature and 100% relative humidity at 100 psig. Designed for applications that were previously forced to accept a –40°F pressure dew point when simple protection against seasonal freezing is the issue. The standard design delivers ISO 8573.1 dew points between Class 2and Class 3 automatically. Class 2 (–40°F) dew points protect against freezing during low ambient conditions and Class 3 (–4°F) dew points keep your air system bone dry during the heat of summer. Applications that require Class 2 (-40°F) dew points year round simply need to select the Free-Air (FA) Supercharger option package.
For more info on SPX Deltech RP Series dryersClick here
