Installation


Some of our recent installations

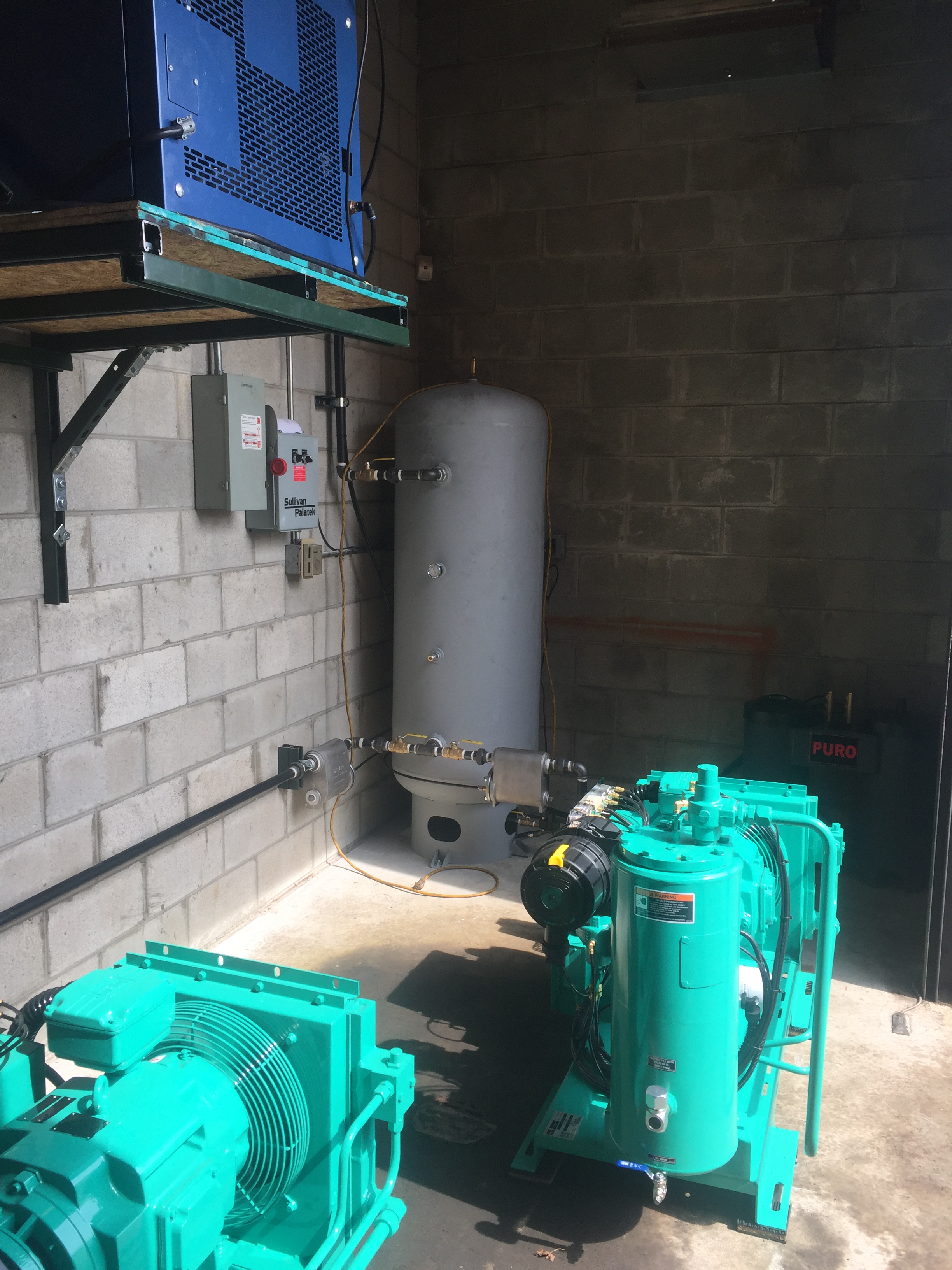

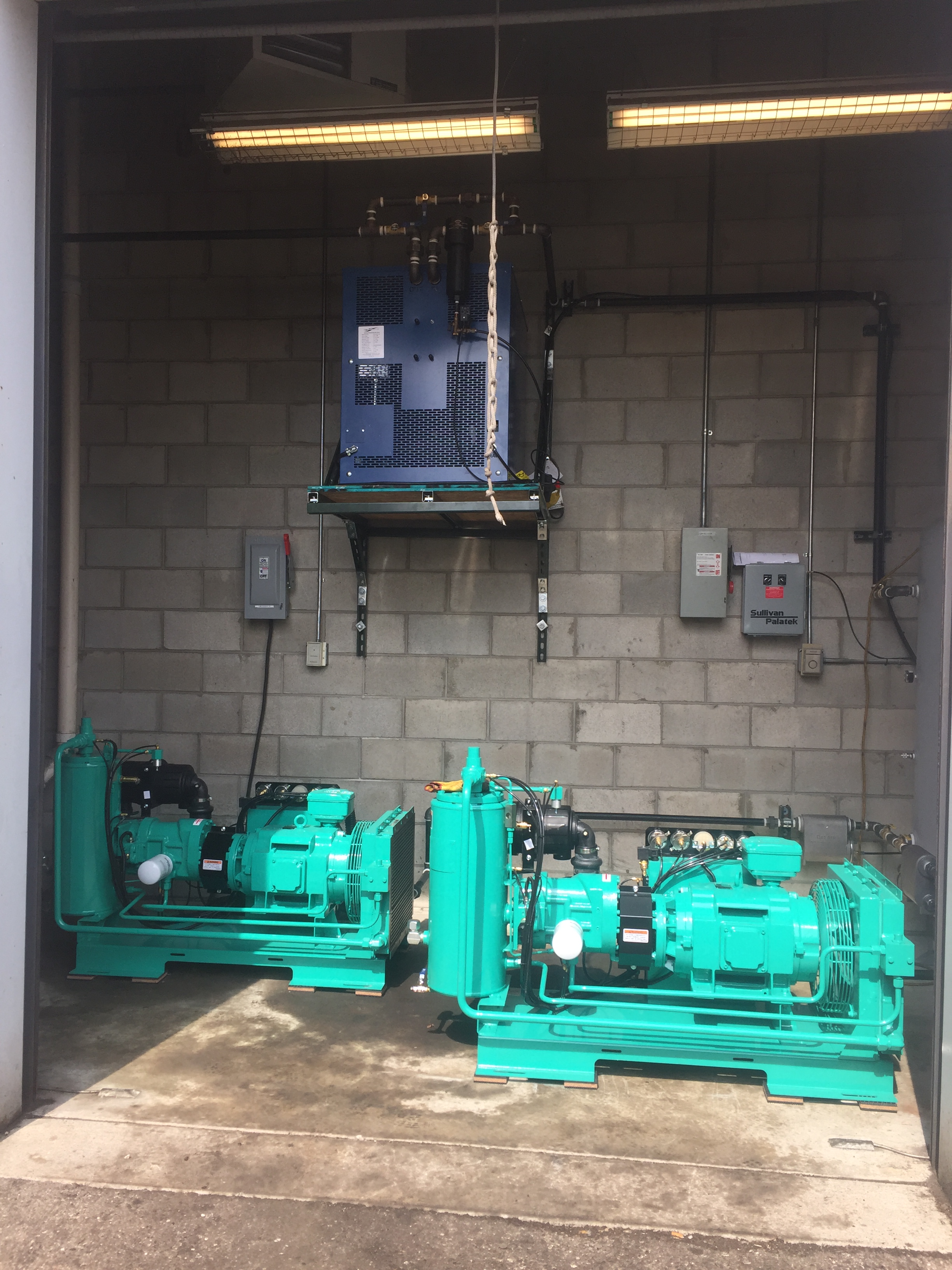

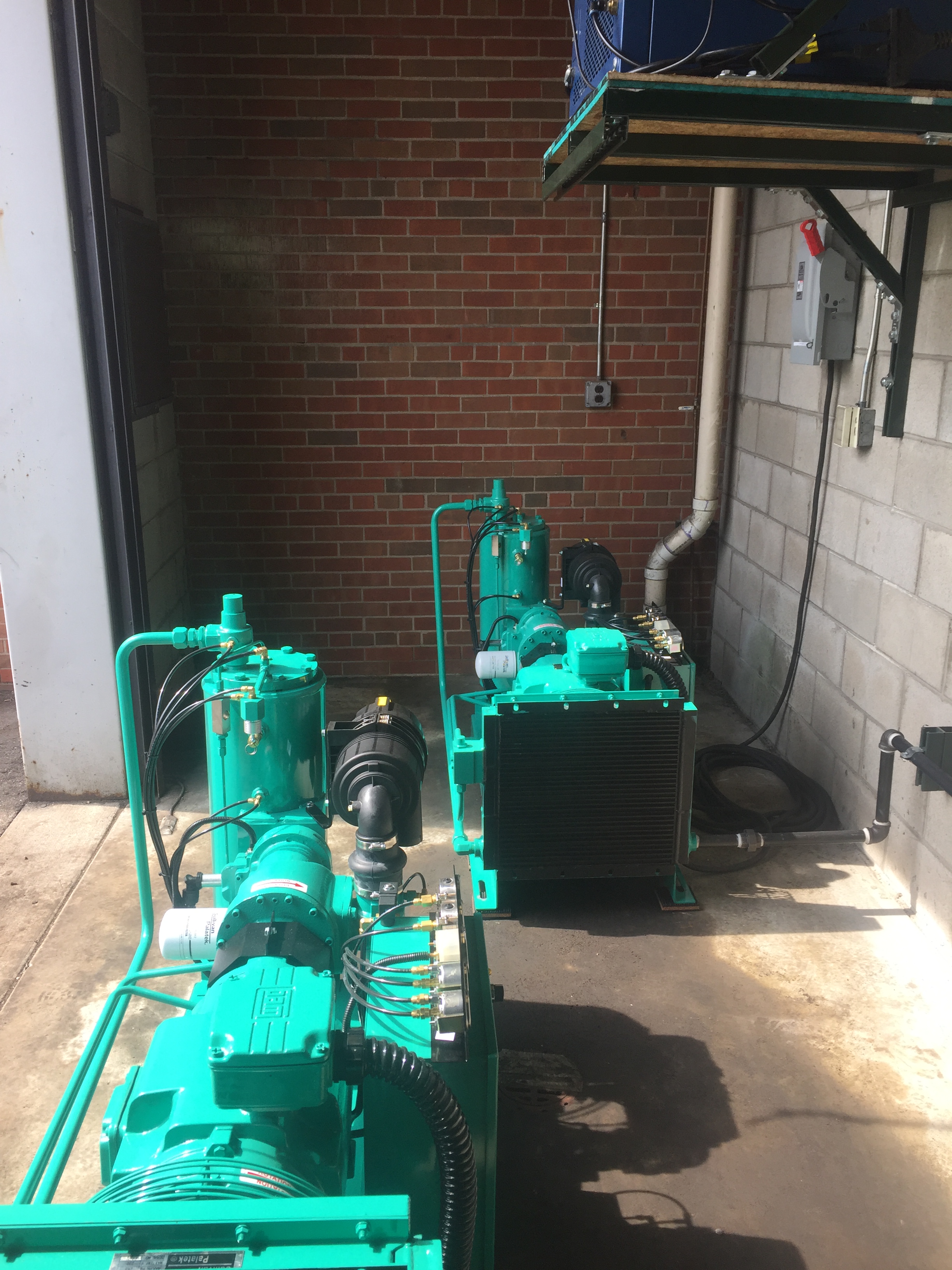

Detroit High Security Facility


IMG_2187.tif IMG_2185.tif IMG_2184.tif

Self contained heated compressor room. 2 x 20HP Sullivan Palatek rotary screw compressors positioned for efficient cooling and easy maintenance. Individual water separators for each compressor. 120 gal control receiver tank. Great Lakes Air GTX-100A-116 100 cfm cycling refrigerated dryer on custom made shelf attached to back wall. All new piping and electrical hookups.

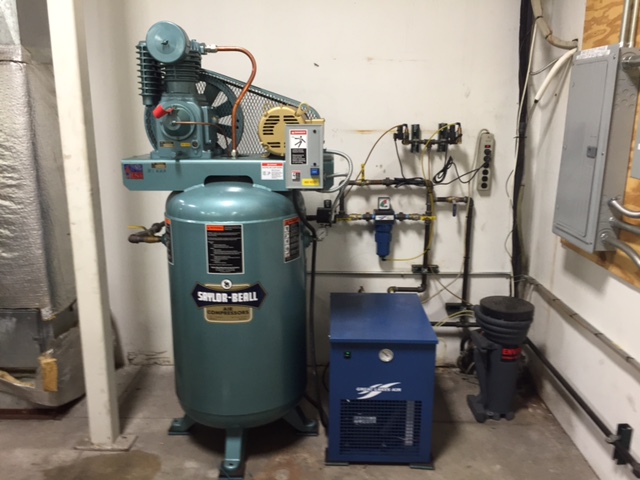

Typical Small shop installation


IMG_0338.tif


Saylor Beall VT 735-80 5 HP 3 phase electric piston compressor

Great Lakes Air GRF 25-116 110V. refrigerated air dryer

Jorc Oil/water separator

Timer drains on the wall behind.

Coalescing filter between the compressor and dryer.




200,000 ft² mixed metal forming, plastic molding and assembly facility


IMG_0345.tif IMG_0347.tif IMG_0349.tif IMG_0353.tif IMG_0357.tif IMG_0355.tif IMG_0354.tif IMG_0371.tif IMG_0365.tif IMG_0375.tif

Click on thumbnail for a larger picture with accompanying description.
